分布式输入/输出模块

分布式输入/输出模块可创建分布式控制系统,通过增加一些I/O信号实现技术目标和扩展PLC的功能。

这些模块也可以连接到我们的KPA EtherCAT 4CAN网关上。

另外:这些模块全部兼容以前的Selectron Systems AG生产的Selectron I/O-devices

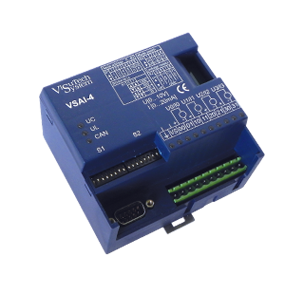

4通道模拟信号输入模块VSAI-4

(fully compatible with Selectron AIC 701 produced by Selectron Systems AG) with 4 isolated analog inputs serves to receive signals of either direct current or direct voltage or both from sensors and transform them into numeric code through each of the four inputs. Data exchange with Master PLC is executed through a serial communication channel based on CAN-interface (ISO 11898). Control and communication scheme is galvanically detached from the output signals scheme.



Main technical characteristics of VSAI-4:

Parameter Value
Supply voltage, V Nominal: constant voltage +24
Tolerance range: constant voltage +18..30
Input signal type Analog
Output signal type Digital
Number of independently controlled outputs 4
Voltage range of input signals, V from 0 to +10
Current range of input signals, mA from 0 to 20
Maximum wattage, W 2,5
Operation temperature range from 0 to +55°С
Protection class rating IP40
Data transfer interface CAN (ISO 11898)
Data transfer maximum speed, Mbit/s 1
Fixing and mounting, mm DIN-rail, 35
Overall dimensions, mm 100х92х60
Maximum weight, g 230

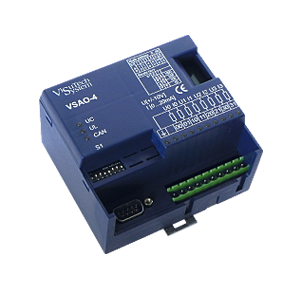

4通道模拟信号输出模块VSAO-4

(fully compatible with Selectron AOC 701 produced by Selectron Systems AG) with 4 isolated analog outputs serves to form permanent signals of either direct current or direct voltage or both through each of the four independent outputs. Data exchange with Master PLC is executed through a serial communication channel based on CAN-interface (ISO 11898). Control and communication scheme is galvanically detached from the output signals scheme.



Main technical characteristics of VSAO-4:

Parameter Value
Supply voltage, V Nominal: constant voltage +24
Tolerance range: constant voltage +18..30
Input signal type Digital
Output signal type Analog
Number of independently controlled outputs 4
Voltage range of output signals, V from -10 to +10
Current range of output signals, mA from 0 to 20
Minimum voltage load resistance, kOhm 2
Maximum current load resistance, Ohm 300
Maximum wattage, W 2,5
Operation temperature range from 0 to +55°С
Protection class rating IP40
Data transfer interface CAN (ISO 11898)
Data transfer maximum speed, Mbit/s 1
Fixing and mounting, mm DIN-rail, 35
Overall dimensions, mm 100х92х60
Maximum weight, g 230

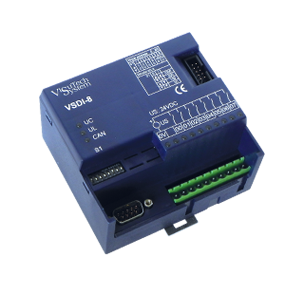

8通道分立式信号输入模块VSDI-8

(fully compatible with Selectron DIC 701 produced by Selectron Systems AG) serves to receive discrete signals from sensors through each of the eight inputs. Data exchange with Master PLC is executed through a serial communication channel based on CAN-interface (ISO 11898). Control and communication scheme is galvanically detached from the input signals scheme.



Main technical characteristics of VSDI-8:

Parameter Value
Supply voltage, V Nominal: constant voltage +24
Tolerance range: constant voltage +18..30
Input signal type Digital
Output signal type Digital
Number of independently controlled inputs 8
Voltage range of input signals, V from 0 to +24
Minimum level of logical “1”, V +14
Maximum level of logical “0”, V +5
Indication of output signal state LED
Maximum wattage, W 2,5
Operation temperature range from 0 to +55°С
Protection class rating IP40
Data transfer interface CAN (ISO 11898)
Maximum data transfer speed, Mbit/s 1
Fixing and mounting, mm DIN-rail, 35
Overall dimensions, mm 100х92х60 мм
Maximum weight, g 230

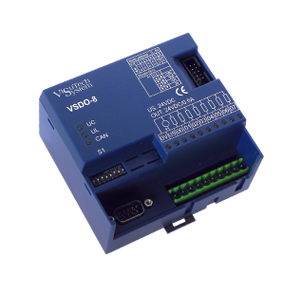

8通道分立式信号输出模块VSDO-8

(fully compatible with Selectron DOC 701 produced by Selectron Systems AG) serves to send discrete signals to the executing devices through each of the eight independently controlled outputs. Data exchange with Master PLC is executed through a serial communication channel based on CAN-interface (ISO 11898). Control and communication scheme is galvanically detached from the output signals scheme.



Main technical characteristics of VSDO-8:

Parameter Value
Supply voltage, V Nominal: constant voltage +24
Tolerance range: constant voltage +18..30
Input signal type Digital
Output signal type Digital
Number of independently controlled outputs 8
Maximum load current on one channel, A 0,5
Minimum load current, A 4
Minimum output level of logical “1”, V 18
Maximum output level of logical “0”, V 2
Maximum wattage, W 2,5
Operation temperature range from 0 to +55°С
Protection class rating IP40
Data transfer interface CAN (ISO 11898)
Data transfer maximum speed, Mbit/s 1
Fixing and mounting, mm DIN-rail, 35
Overall dimensions, mm 100х92х60
Maximum weight, g 230
Indication of output signal state LED
