介绍

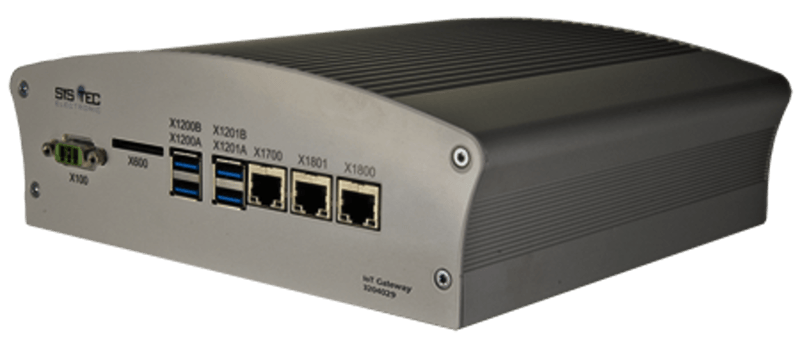

为了在现场级准备过渡到“工业4.0”，我们为因特网行业开发了即用网关解决方案。我们的IoT-网关基础是ECUcore-1021，加上专用的应用载板，装在IP20铝合金外壳内。ECUcore-1021基于飞思卡尔Layerscape LS1021A，是一种嵌入式控制器，具有高密度可用通讯和I/O接口。
模块上系统提供杰出性能又有较低功耗并且特别适用于现代工业应用的安全通讯。载板装备大量常用高速接口例如 Gigabit Ethernet、USB3.0、SATA3.0、PCI-Express、LVDS、DVI 和 SD-卡。另外，它还支持WLAN接口板卡，通过MiniPCIe插槽连接。这种大量的板载外设特别适用于实施自己的 IoT-网关应用。该设备的零部件具有长寿命并且能够可靠工作于工业环境温度 -40°C 至 85°C。
文档
| 名称 |
类型 |
大小 |
动作 |
| E |
ECUcore-1021 - Product Flyer
|
pdf |
2 MB |
Download |
订货说明
| 货号 |
说明 |
| 3204029 |
IoT-Gateway
Program download via Ethernet/UDP, SD-Card or USB-device
1GB RAM, 128MB QSPI NOR Flash, 3x 1Gb-ETH, 4x CAN, 3x USB 3.0, RS232, RS485, miniPCIexpress socket, SD-card slot, connector for mSATA-module, 1x DVI, wall mountable IP20 enclosure |
| 40040xx |
3G/4G Wireless Card
pre-installed and tested on IoT-Gateway |
| 4004036 |
64GB mSATA add-on module
pre-installed and tested on IoT-Gateway |
| 4004037 |
WIFI add-on module
pre-installed and tested on IoT-Gateway |
| 4004040 |
CAN Socket Connector
|
| 40040xx |
Power Connector |
|
|
模块特性
| 核架构 |
Dual-ARM Cortex™-A7, 1GHz with FPU and Neon co-processor |
| RAM |
1GB DDR3L-1600MT (opt. ECC) |
| Flash |
128 MB QSPI NOR |
| 通讯 |
Up to 3x1Gb-Ethernet,
4xCAN, 4xUSB 3.0,
2x RS232, 2x RS485,
MiniPCIexpress socket (internal) |
| 海量存储 |
SD-Card slot, Connector for mSATA-module (internal) |
| 视频 |
1xDVI |
| 可选插件 |
WiFi, mSATA, GSM/3G (via extension cards) |
| 外壳 |
IP20 aluminum housing for DIN/EN rail mounting |
| 尺寸 |
210 x 200 x 60 (L x W x H in mm) |
| 电源 |
24VDC |
| 耗电 |
max. 2A |
| 工作温度 |
-40°C…85°C (Storage: -55°C…125°C)
Heat spreader is integrated, fanless cooling |
| 软件 |
Linux with device driver, preempt patches, Kernel CANopen Library
VMware with Linux and cross-development environment for Freescale Layerscape LS1021A |
| 可选软件插件 |
IEC 61131-3 OpenPCS with CANopen Manager or CODESYS v3.5 with CANopen
CANopen Source Code
Web-Visualization for IEC 6113-3 Runtime System
OpenPOWERLINK Stack Source Code
Modbus Library |
|
