  CAN232


下载

出版物:

 Press Release CAN232 version 3  (new version of CAN232, May 2009)

手册:

 CAN232 V3 Manual (Version 3 manual for CAN232 V1324 and newer)

 CAN232 V2 Manual (Version 2 manual for CAN232 V1220)

 CAN232 V1 Manual (Version 1 manual for CAN232 V1010-V1014)

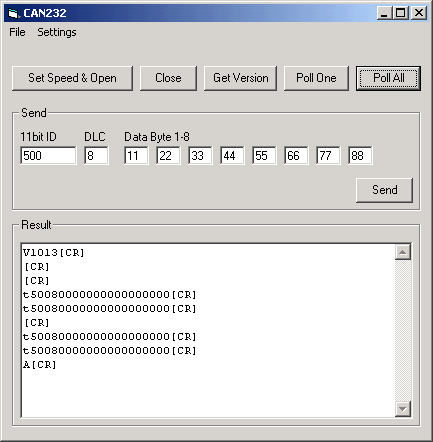

Visual Basic V6 Demo:

CAN232用VB 6(version 6)来编写的,它基于Visual Basic,是一个展示如何与CAN232“交谈”的软件。需要编译或者改变代码的话,需要使用VB6。如果你只需要可执行文件,那么只需下载ZIP 压缩文件然后解压,运行CAN232.exe文件就可以了。EXE文件(注意:需要使用VB6 runtime文件才能运行,但为了节省空间和带宽,CAN232软件中没有包括这些文件)。

软件的使用说明在frmMain.frm文件中。请下载最新版本,因为旧版1.0.0只为CAN232版本一的使用者作参考用。

 Download ZIP file with VB6 Project and Executable file (13KB), version 1.0.0.

 Download ZIP file with VB6 Project and Executable file (14KB), version 1.0.1.


Delphi:

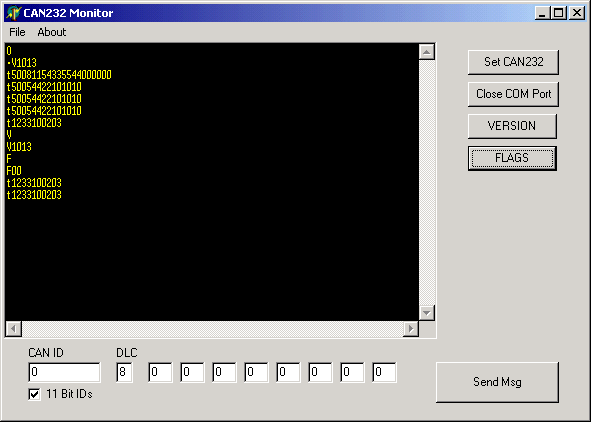

CAN232监控软件是用Delphi version 5来编写的,是一个简单的发送和接收CAN报文的工具,可以设定任意的CAN波特率与COM端口。该软件每间隔100mS就自动轮询一次CAN232的信息,并且把最终的报文帧都自动地显示在窗口上,如上图所示。

同样通过设置ID,数据长度DLC和十六进制的0-8字节的数据,便可以直接用这个软件发送报文。该软件带有完整的源代码以及使用免费的用于RS232通信的LIB库(见下面的RS232 LIB库下载链接)。

该免费版本是免费使用的,可以根据需要来修改。正是由于该软件是免费的,所以我们不为这个软件以及RS232 LIB库提供支持。要编译或者改变代码,需要使用RS232 LIB。如果你只需要可执行文件,那么只需要下载ZIP 压缩文件后解压,运行CAN232.EXE文件就可以了。

很快,带有完整源代码的扩展版本就要发行了,将能提供更快的polling轮询、记录文件以及得到我们更多的支持信息。所有这些只收取少许费用。欢迎不久后再次浏览以获取更多信息。

 Download ZIP file with Delphi Project and Executable file (237KB), version 1.05.

本来,我们采用Dejan Crnila's ComPort LIB version 2.6.3来开发该软件的,但是由于Dejan Crnila's ComPort LIB网页已经取消了。经过一番研讨,把这个开发工作移到SourceForge上来,现在正由几位人员来开发。新版本已经具备,但是我们还没有测试Delphi的应用,不过很快将开展测试工作。

 Visit Dejan Crnila excellent TComPort Library for Delphi & BC++.




C Sample Program (Linux) :

CAN232 Project in C for Linux is written by Attila Vass from USA. He has made some excellent programs for the CAN232 such as a Acceptance Register Calculator, Data Collector and Logger and much more mainly to be used to log CAN from 04 Prius, however much of the general source code could be used as getting started with C & Linux. All source code and information could be found at his site.

These C files can be ported to e.g. Windows platform or any other C environment, since all source code is included. Currently LAWICEL cannot answer any support related questions of this project, contact information can be found at the site below.

 Visit Attila Vass 04 Prius Project.




C++ Sample Program (Linux) :

CAN232 Project in C++ for Linux written by Svenn Rönnbäck of Luleå University of Technology in Sweden. This project will use socket communication for the CAN232, so it is actually possible to be anywhere in the world to control the CAN232 through sockets. There will be a JAVA client for it as well soon. More information will be here and also on the link below as the projects develops. The code is under the GNU licence. There is a readme file there to describe the project more in detail.

These C++ files can be ported to e.g. Windows platform or any other C++ environment, since all source code is included. Currently LAWICEL cannot answer any support related questions of this project, contact information can be found at the site below.

 Visit the CAN232 Linux C++ Project.
