Thermocouple tolerance : class 1 according to IEC584-2 +/-1.5°C or +/-0.004 x t (which is higher)

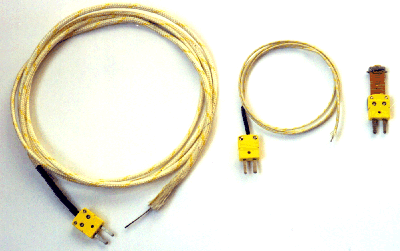

Wire probes (left ro right) GD1250, GD700, GD260
Fast response wire probes for gas, liquids and surface. Lenghts of 1m, 2m, 3m, 4m.
type GD 260 -65 to 260°C teflon insulated, 0.8mm outside diameter, extremely fast response
type GD 700 -65 to 700°C duplex insulated - high temperature glass braid, 2mm outside diameter
type GD 1250 -65 to 980°C duplex insulated - Nextel ceramic, 4mm outside diameter
SNP04 - Selfadhesive labels 25x40 mm for fixing the wire probe to the surface, temperature -70 to 260°C, set of 20 labels
Fast response surface probe for flat surface
type CP500 -65 to 500°C
Penetration needle probe
type CZ900 -65 to 900°C
Fast penetration needle probe for soft materials
type CZ550 -65 to +550°C, time response t90 approximately 3s, metal part from stainless steel V4A
Insertion probe for fluids and gases
type GT1150 -50 to 1150°C
SNP03 - Extension cable "K" with connectors up to +200°C, optional lengths 1 to 50meters, duplex insulated
Subminiature connectors for thermocouple J, K, S up to +200°C (please specify thermocouple type), male or female
|
