高精度温度探头,采用 Ni1000/6180ppm 传感器和扣带公接头


Equipped with male Cinch connector for T-PRINT and Commeters D3631, C3631

Tolerance of probes ± ( 0.15 + 0.002 * t ) °C - class A in accordance with IEC751

photo of probe Pt1000TG8
Multi-purpose stainless steel watertight (IP67) probe -30 to +80°C with the PVC cable. Diameter 5.7mm, length 40mm. Available at the cable length 5,10 or 15 meters.
type N1ATG8U/C


photo of probe Pt1000TG8
Multi-purpose stainless steel watertight (IP67) probe -50 to +200°C with the silicone cable. Diameter 5.7mm, length 40mm. Available at the cable lengths 1,2,5,10 or 15 meters.
type N1ATG8/C


Brass surface probe with cable of specified length, range -30 to 200°C. Diameter 18mm, width 6.5mm. Mounting by a M4 screw or fixing by a self adhesive tape. Available with cable lengths 1,2,5,10 or 15 meters.
type N1ATG7/C

photo of probe 200-80/C
type 100-60 air probe -30 to +80°C


probe 031-60 photo of probe 031-60

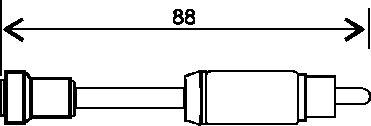

type 031-60 Miniature surface probe -10 to 60°C

probe 0031-150 photo of probe 031-150

Direct surface probe -30 to 150°C, 1 meter cable
type 031-150/C

probe 301-220 photo of probe 301-220

Hand held pointed tip probe -30 to 220°C, 1 meter cable
type 301-220/C

probe 0061-200

photo of probe 0061-200

Hand held pointed tip probe -30 to +200°C for food industry, teflon handle, cable length 1 meter
type 0061-200/C

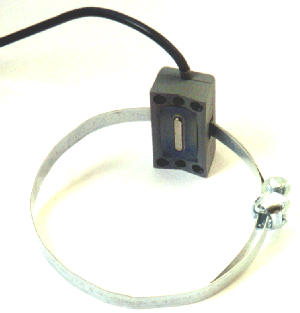

Surface probe for tubing and flat surface -30 to +130°C, cable length 2meters
type NS151-2/C
